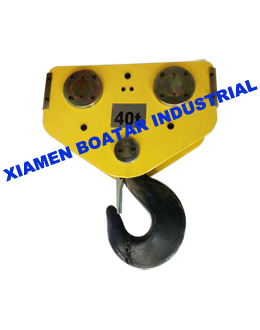

Heavy duty hook capacity 25t to 120t

Heavy duty hook capacity 25t to 120t

Share on FacebookTweet about this on TwitterShare on LinkedInShare on Google+
INQUIRY

the series heavy duty hook is  widely applicable in workshop, warehouse, port and etc. but strictly forbit to use in situation such as explosive, corrosive, acied, plating and etc.
Feature:
♦ made of high quality steel, forged hook, high strengh, safe, reliable and durable;
♦ compact structure, good appearance;
♦ high-thrust bearing accembly, light and flexible;

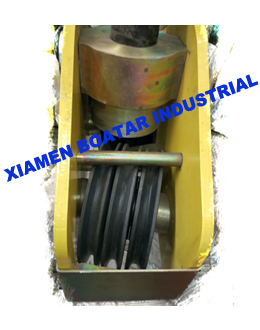

♦ using precision cast steel pulley which can protect wire rope well, long life-span;
♦ high efficiency with smoonth and silent running, low noise;
♦ suit for high lifting capacity and heavy duty class.

OEM and customize accepted, welcome to contact us for more details.

Model Capacity

(Ton)

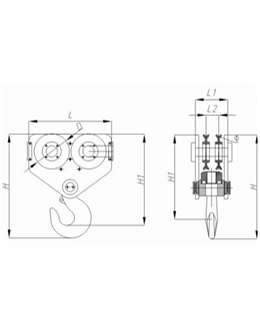

Main Dimension(mm) Weight(Kg)
H H1 L L1 L2 Φ D
EDD25T 25 800 710 592 210 56*2*2 12 245 162
EDD32T 32 865 750 592 252 56*3*2 12 245 206
EDD40T 40 940 810 840 250 70*2*2 16 354 332
EDD50T 50 1090 540 840 290 70*2*2 16 354 400
