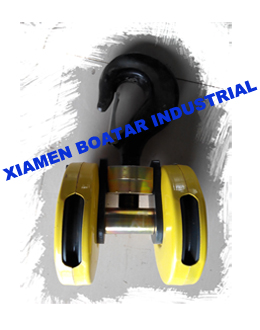

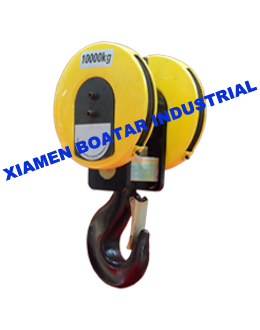

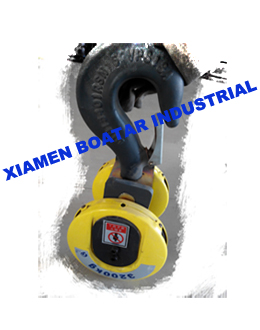

european style hook with double pulley capacity 3.2t to 20t

european style hook with double pulley capacity 3.2t to 20t

Share on FacebookTweet about this on TwitterShare on LinkedInShare on Google+
INQUIRY

Widely apply in workshop, warehouse, port and etc. but strictly forbit to use in situation such as explosive, corrosive, acied, plating and etc.
Feature:
♦ made of high quality steel, forged hook, high strengh, safe, reliable and durable;
♦ compact structure, good appearance;
♦ high-thrust bearing accembly, light and flexible;
♦ using precision cast steel pulley which can protect wire rope well, long life-span;
♦ high efficiency with smoonth and silent running, low noise;
♦ suit for high lifting capacity and heavy duty class.

OEM and customize accepted, welcome to contact us for more details.

Model Capacity
(Ton)

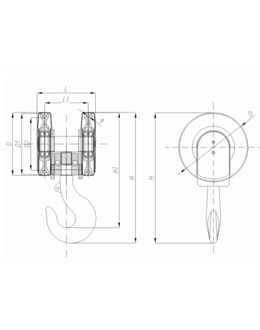

Main Dimension(mm) Weight(Kg)
H H1 L L1 D1 D2 Φ D
ED3.2T 3.2 394 345 200 140 158 134 6-8 165 18
ED5T 5 462 400 230 167 198 164 8 204 26
ED10T 10 530 470 287 202 245 214 11 263 50
ED16T 16 700 620 340 232 358 308 15 370 95
ED20T 20 760 670 340 256 358 308 15 370 128
