single row pulley hook capacity 10T-32T

single row pulley hook capacity 10T-32T

20V Max Lithium Ion Jig Saw Kit by DeWalt®. Includes: One DCB204: 20V Max XR Premium Li-Ion Battery (4.0 Ah), Fast Charger, jig saw blade, kit box.

Share on FacebookTweet about this on TwitterShare on LinkedInShare on Google+
INQUIRY

single row pulley hook is widely applicable in workshop, warehouse, port and etc. but strictly forbit to use in situation such as explosive, corrosive, acied, plating and etc.
Feature:
♦ made of high quality steel, forged hook, high strengh, safe, reliable and durable;
♦ compact structure, pulley in single row;
♦ high-thrust bearing accembly, light and flexible;
♦ using precision cast steel pulley which can protect wire rope well, long life-span;
♦ high efficiency with smoonth and silent running, low noise;
♦ suit for high lifting capacity and heavy duty class.

Model Capacity
(Ton)

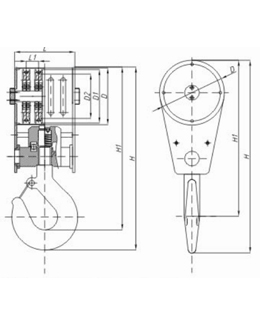

Main Dimension(mm) Weithg(Kg)
H H1 L L1 D1 D2 Φ D
ES10T 10 695 620 254 60*3PCS 245 216 11-15 294 86
ES16T 16 750 660 254 60*3PCS 245 216 11-15 294 108
ES20T 20 840 760 304 60*4PCS 245 216 11-15 294 138
ES32T 32 950 830 560 70*5PCS 315 270 15-17 360 302
