Application

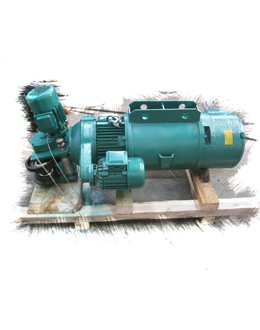

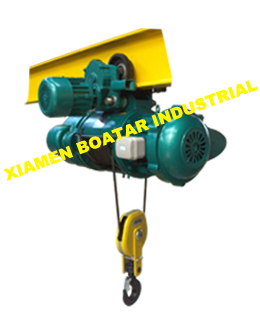

CD/MD series electric wire rope hoist can be mounted on overhead crane, gantry crane and jib cranes, widely used in factory, mine, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working condition. CD/MD electric wire rope hoist is designed according to Chinese Norm JB/T 9008.1-9008.2-2004.
Features
- Use high quality motor, reducer, bearing and strengthen drum, shaft, long life-span.
- Rust protection painting, average thickness is about 0.1 mm
- Lifting speed: single(CD series) or dual(MD series) as per requirements
- Traveling speed: single(CD series) or dual(MD series) as per requirements
- Can be control by pendant station or remote controller (optional)
- Multiple security protection. with rope guide, zero position protection, earth protection, overload protection, lifting travel protection. And emergency(control device) as well.
OEM and customize accepted, welcome to contact us for more details.
| Capacity(Ton) | 1 | 2 | 3 | 5 | 10 | 16 | |||||||||||||||||||||||||||||
| Lifting height(M) | 6/9/12/18/ 24/30 |
6/9/12/18/ 24/30 |
6/9/12/18/ 24/30 |
6/9/12/18/ 24/30 |
9/12/18/24/30 | 9/12/18/24/30 | |||||||||||||||||||||||||||||
| Lifting speed(r/min) | 8 (0.8/8) | 8 (0.8/8) | 8 (0.8/8) | 8 (0.8/8) | 7 (0.7/7) | 3.5(0.35/3.5) | |||||||||||||||||||||||||||||
| Traversing speed(r/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | |||||||||||||||||||||||||||||
| Steel wire rope | Dia. | 7.4 | 11 | 13 | 15 | 15 | 17.5 | ||||||||||||||||||||||||||||
| Spec. | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | |||||||||||||||||||||||||||||
| Reeving | 2/1 | 2/1 | 2/1 | 2/1 | 4/2 | 4/1 | |||||||||||||||||||||||||||||
| Track | 16-28b | 20a-32c | 20a-32c | 25a-63c | 32a-63c | 32a-63c | |||||||||||||||||||||||||||||
| Min. curvalue radus(M) | 2/2/2/2/3/4 | 2/2/3/3/3/4 | 2/2/2.5/2.5/3/4 | 2.5/2.5/3/4/4.5/6 | 3.5/4/6/7.5/9 | 3.5/4/6/8/11 | |||||||||||||||||||||||||||||
| Lifting motor | Model | ZD22-4(ZDS) | ZD31-4(ZDS) | ZD32-4(ZDS) | ZD41-4(ZDS） | ZD51-4(ZDS） | ZD51-4(ZDS） | ||||||||||||||||||||||||||||
| Power(W) | 1.5 (0.2/1.5) | 3.0(0.4/3.0) | 7.5(0.8/7.5) | 7.5(0.8/7.5) | 13(1.5/13) | 13(1.5/13) | |||||||||||||||||||||||||||||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 | |||||||||||||||||||||||||||||
| Traversing motor | Model | ZDY11-4 | ZDY12-4 | ZDY12-4 | ZDY21-4 | ZDY21-4 | ZDY21-4 | ||||||||||||||||||||||||||||
| Power(W) | 0.2 | 0.2 | 0.4 | 0.8 | 0.8*2 | 0.8*2 | |||||||||||||||||||||||||||||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||||||||||||||||||||||||
| Times of connecting | 120 | ||||||||||||||||||||||||||||||||||
| Working clasification | FC=25% (M3) | ||||||||||||||||||||||||||||||||||
| Main power | 380V AC, 50HZ | ||||||||||||||||||||||||||||||||||

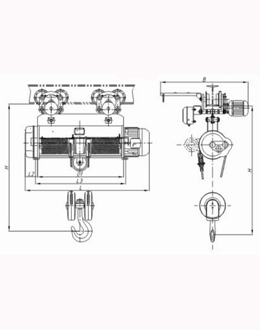

| Main dimensions (mm) |
L/L1/L2/L3/L4/N/H/d/b Pls contact us for more details | ||||||||||||||||||||||||||||||||||
| Selfweight(KG) | MD With trolley |
164~247 | 256~388 | 311~481 | 508~783 | 1104~1467 | 1220~1653 | ||||||||||||||||||||||||||||
| MD Fixed type |
132~192 | 201~284 | 252~370 | 430~586 | 851~1183 | 949~1373 | |||||||||||||||||||||||||||||
| CD With trolley |
137~220 | 221~353 | 281~451 | 437~726 | 1048~1411 | 1130~1563 | |||||||||||||||||||||||||||||
| CD Fixed type |
105~165 | 166~249 | 222~340 | 377~529 | 795~1127 | 850~1283 | |||||||||||||||||||||||||||||
