Single pulley hook is widely use in workshop, warehouse, port and etc. but strictly forbit to use in situation such as explosive, corrosive, acied, plating and etc. suit for hoist reeving 2/1.
Feature:
♦ made of high quality steel, forged hook, high strengh, safe, reliable and durable;
♦ compact structure, good appearance;
♦ high-thrust bearing accembly, light and flexible;
♦ high efficiency with smoonth and silent running, low noise;
♦ suit for high lifting capacity and heavy duty class.
OEM and customize accepted, welcome to contact us for more details.

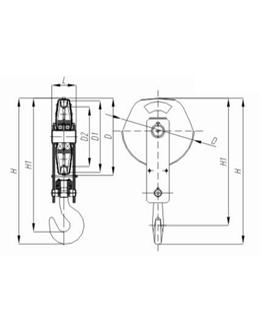

| Model | Capacity （Ton） |
Main Dimension（mm） | Weight（Kg） | ||||||
| H | H1 | L | D1 | D2 | φ | D | |||
| S1T | 1 | 390 | 360 | 100 | 160 | 138 | 9 | 180 | 7 |
| S2T | 2 | 460 | 420 | 130 | 195 | 162 | 12 | 225 | 13.5 |
| S3T | 3 | 500 | 455 | 130 | 195 | 162 | 14 | 225 | 16 |
| S5T | 5 | 630 | 570 | 160 | 250 | 180 | 16 | 270 | 26 |
| S10T | 10 | 875 | 790 | 184 | 400 | 354 | 22 | 420 | 64 |
| S16T | 16 | 950 | 850 | 200 | 400 | 354 | 28 | 420 | 84 |
